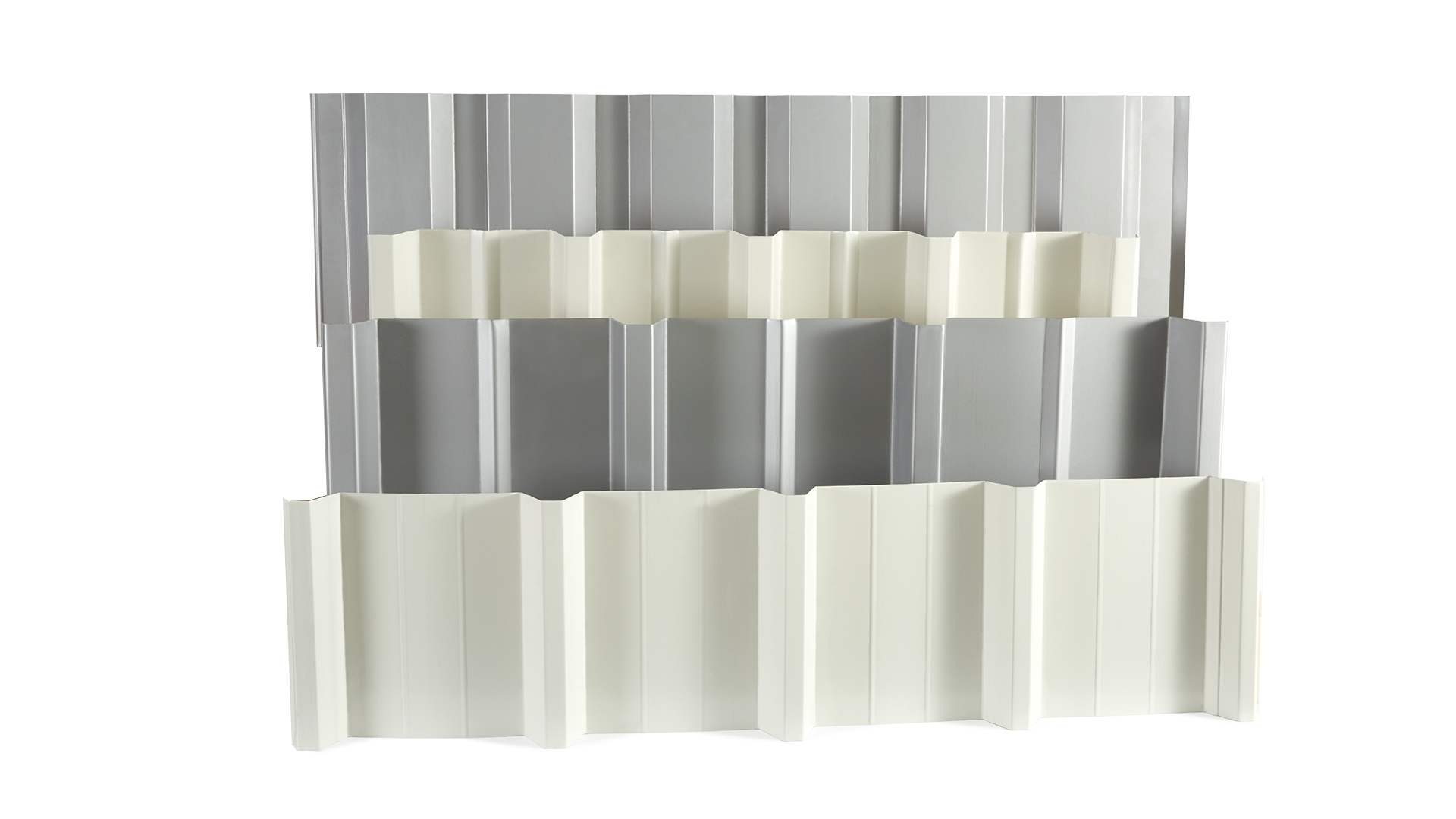

DK 90 Facade Sheet
Corrugated sheets for facades are produced for the buildings with no insulation needs and for the site-applied insulation system.
BrochureTechnical Informations
Technical Features
| Product Name | DK 90 | ||
| Useful Width (mm) | 900 | ||
| Rib Height (mm) | 40 | ||
| Covering (mm) |
Galvanized Painted Sheet(0.50 -1.20) |
||
| Paint Type | Polyester PVdF |
||
| Color | RAL 9002a | ||
Carrying Table
| DK 90 | Multi Support Span (L/200 L=m) | |||||||
| Sheet Thickness (mm) | Corrugated Weight (kg/m2) | 1,0 | 1,5 | 2,0 | 2,5 | 3,0 | 3,5 | 4,0 |
| Distributed Load Bearing (P=kg/m2) | ||||||||
| 0,5 | 5,17 | 784 | 348 | 196 | 110 | 63 | 40 | 27 |
| 0,6 | 6,21 | 1010 | 449 | 253 | 144 | 84 | 53 | 35 |
| 0,7 | 7,24 | 1255 | 558 | 314 | 182 | 105 | 66 | 44 |
| 0,8 | 8,28 | 1514 | 673 | 379 | 222 | 128 | 81 | 54 |
| 0,9 | 9,31 | 1787 | 794 | 447 | 263 | 152 | 96 | 64 |
| 1,0 | 10,35 | 2055 | 914 | 514 | 306 | 177 | 112 | 75 |
| 1,2 | 12,42 | 2504 | 1113 | 626 | 372 | 215 | 136 | 91 |
Certificates and Documents

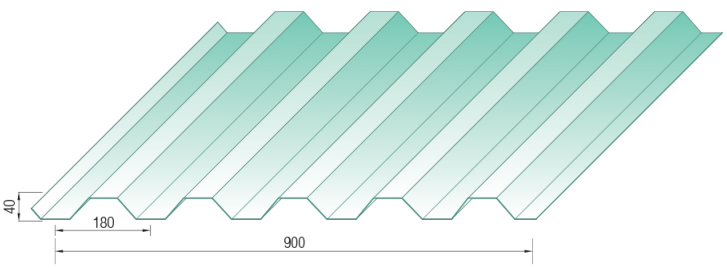

Panel Joint Detail
